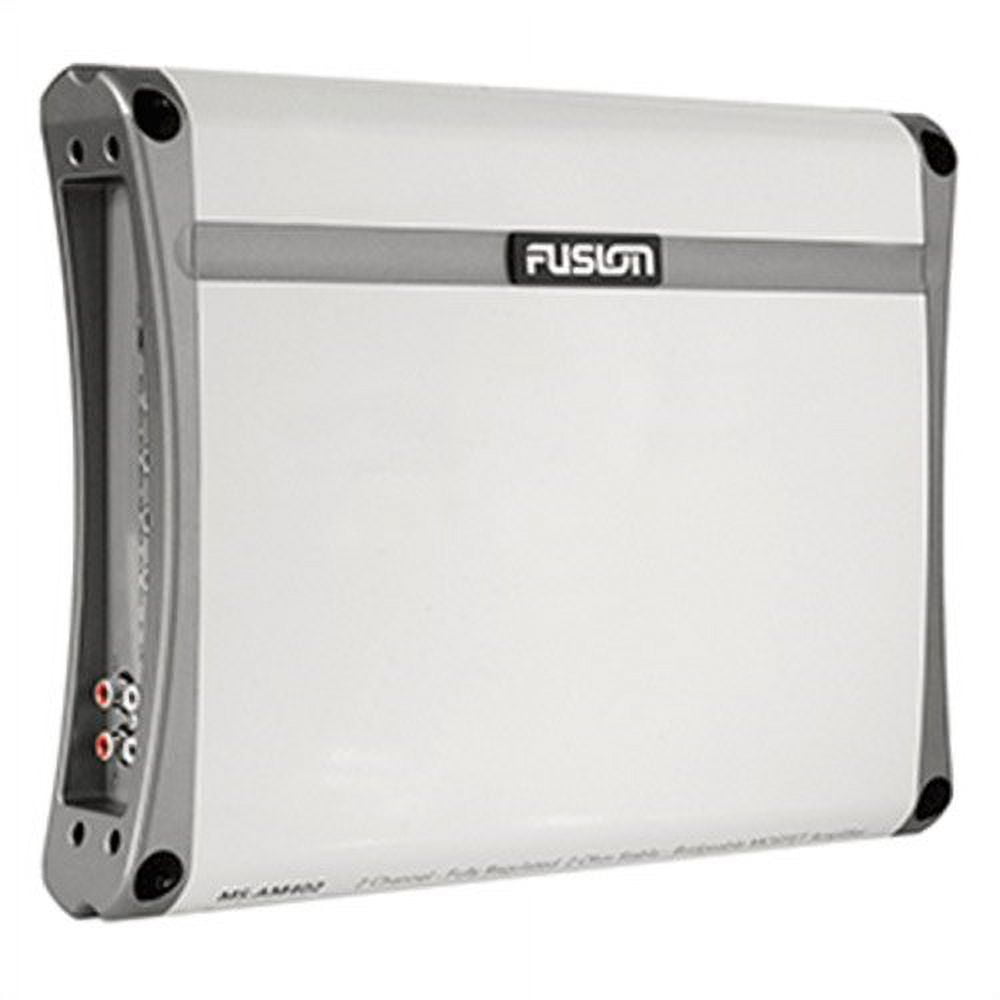

Fusion MS-AM402 2 Channel Marine Amplifier
Product details
| Management number | 238020819 | Release Date | 2026/07/11 | List Price | US$63.51 | Model Number | 238020819 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The FUSION AM Series Marine amplifiers are purpose built for the marine environment, boasting some of the most impressive environmental protection available, to deliver performance on the water like never before.<br><br> Incorporating heat-tempered and conformal coated PCB's for maximum product life and gold plated connectors for improved signal flow - The result is a clean and powerful reproduction of the input signal, delivering enough power to rock the boat.<br><br> The 2 Channel 400 Watt (Peak) MS-AM402 will drive up to two subwoofers, an extra pair of speakers or even 4 speakers (2 speakers in parallel each channel at 2 Ohms).<br><br> The FUSION AM Series incorporates the following innovative technologies:<br> FUTRANZ Heat Sink Technology, which transfers heat more efficiently and offers more thermal stability and maximum component reliability.<br> F.R.A.T FUSION Regulated Amplifier Technology, which outputs enormous power output at the lowest voltage<br> F.I.S.T FUSION Intercooled Semi-Conductor Technology, which clams down internal power switching - rapidly removing heat from all associated semi-conductors<br> The FUSION AM Series Marine Amplifiers are the perfect complement to any FUSION Marine stereo system.<br> <br> Amplifier Specifications <br><br> Frequency Response 5Hz - 38kHz +/- 3dB<br> Peak Power 400 Watts<br> Rated Power 14.4 Volt Power Output Specification 65 Watts RMS x 2 @ 4 Ohm 1% THD+N 100 <br>Watts RMS x 2 @ 2 Ohm 1% THD+N 200 Watts RMS x 1 @ 4 Ohm Bridged<br> <br>Mounting Dimensions<br> <br><br> Depth 229mm [9"]<br> Hight 53mm [2-1/16"]<br> Length 296mm [11-/2/3"]
- MS-AM402 2 Channel Marine Amplifier - 400W Features:
- Marine Grade Chassis - Stainless steel end caps and bottom plate provide a stunning finish with added environmental protection.
- Heat Sink Technology - Heat sink technology transfers heat more efficiently and offers more thermal stability for maximum component reliability.
- Class-AB Design - The 400 Watt 2-Ohm stable (per channel) design ensures clean and powerful amplification of the input signal,enough to rock the boat.
- Conformal Coated Circuitry - Provides added protection from salt air and moisture to ensure maximum product life.
- RCA Line Out - A pass through the RCA output enables linking of multiple amplifiers for enhanced system performance.
- 2 Channels - Capable of powering 2 speakers, a sub (bridged) or 4 speakers in parallel.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
- Bridgeable: Yes
- Channels - Available: 2
- Waterproof Rating: Splashproof
- Watts: 400w
- Box Dimensions: 4"H x 11"W x 15"L WT: 6.3 lbs
- UPC: 753759139247Owner's Manual (pdf)
| Brand | Fusion |
|---|---|
| Rms power rating | 65 W |
| Channels | 2 |
| Impedance | 2 ohm |
| Features | Water-Resistant |
| Peak audio power handling | 400 W |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Size | 0.0 |
| Color | White |
| Audio output | 400 W |
| Total harmonic distortion | 1 % |
| Signal-to-noise ratio | >90 |
| Inputs/Outputs | RCA Line Out |
| Input/output direction | Output |
| Model | 0100149900 |
| Vehicle type | Motor Vehicle |
| Vehicle fitment type | Universal |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Assembled product weight | 6.3 lb |
| Volts | 14.4 V |
| Amps | 0 Amps |
